Normal Stocking: 170-gallons
Heavy Stocking: 105-gallons

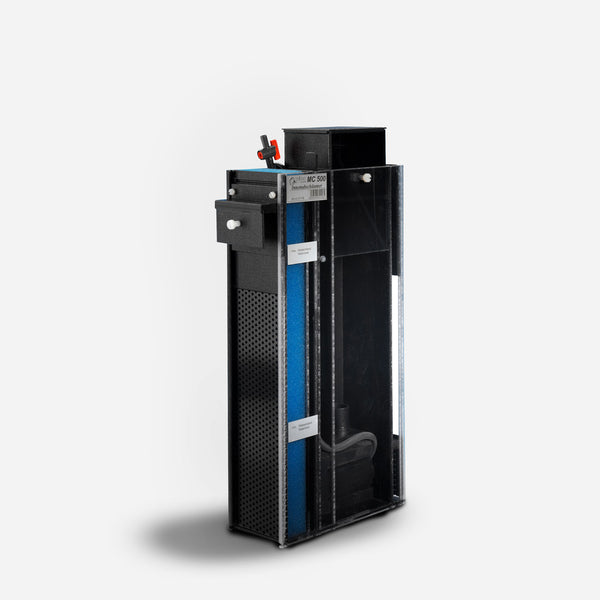

The MC500/501 Protein Skimmers have a compact design. This allows the unit to hang onto aquariums with limited external room and gives it the flexibility to hang on almost any brand of aquarium. Now also available as a DC controllable version, the MC501.
Features
• Compact design.
• Can be hung on the outside of the aquarium or sump.
• Draws its own water from the aquarium via the internal needle wheel pump.
• Extremely low power consumption.
• Quick and easy removal of the pump.
• Includes mounting brackets to hang outside the aquarium or sump.
---
Model Specifications
MC500
Dimensions (LxWxH): 8.25” x 3.5” x 21” (normal position)
Pipes extend 3.75 inches from protein skimmer body.
Unit must be a minimum of 3.25" above the water line to work properly.
Power Consumption: 10 watts, 350-400 liters of air/hr.
Pump: DCS600 (120V)
Stocking:
Normal Stocking: 170-gallons
Heavy Stocking: 105-gallons
MC501
Dimensions (LxWxH): 8.25” x 3.5” x 21” (normal position)
Pipes extend 3.75 inches from protein skimmer body.
Unit must be a minimum of 3.25" above the water line to work properly.
Power Consumption: 13-17 watts, 350-400 liters of air/hr.
Pump: DCC 2 (24V)
Stocking:
Normal Stocking: 170-gallons
Heavy Stocking: 105-gallons
--
